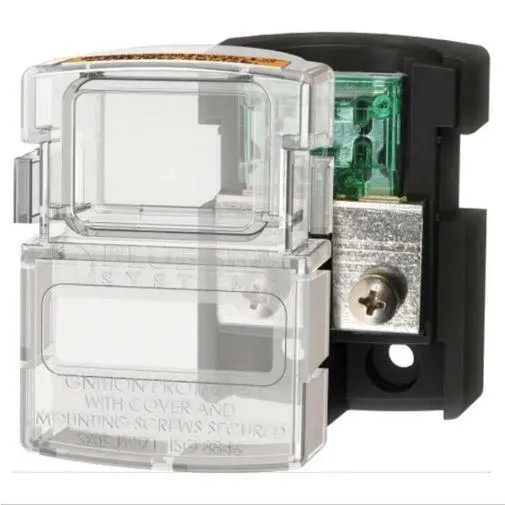

Enerdrive Ignition Protected Fuse Block Suits MAXI 30-80A
Key Fesatures:
Product Description: Enerdrive Ignition Protected Fuse Block suitable for MAXI 30-80A fuses.
Safety Features: Snap-on terminal cover insulates all conductive parts, meeting ABYC/USCG requirements. Cover breakouts allow wires from the sides or bottom.
Low Resistance Connections: Terminal screws compress fuse blades within blocks for low resistance connections.
Labeling and Compliance: Label recess accepts large format labels. CE marked and meets ISO 8846 and SAE J1171 external ignition protection requirements when the cover is securely latched and all mounting screws are installed.
Specifications:
- Max Operating Voltage: 32V DC
- Wiring Size: 14-4 AWG
- Max Operating Amps: 80A
- Part Number: BS-5006100B
